Aqara Smart Door Window Sensor
Aqara Smart Door Window Sensor

Aqara Smart Door Window Sensor Zigbee Mini Door Sensor Wireless Connection Alarm Smart Home for Mijia Mi Home Gateway HomeKit

$35.50 USD$45.50 USD22% off

Color: 1pc with box

Add to cart
Buy now





Aqara Door Window Sensor Zigbee Wireless Connection Smart Mini door sensor Work With Mijia Mi Home APP For Android IOS
The product model of AQARA door sensor is MCCGQ11LM.


The Xiaomi Aqara smart windows door sensor can detect the opening and closing of door and windows and send a notification to your phone via the APP.

With the ability of matching with other Xiaomi smart devices such as gateway remote control, smart bulb, air cleaner, etc. this sensor is able to help you create a smart home.

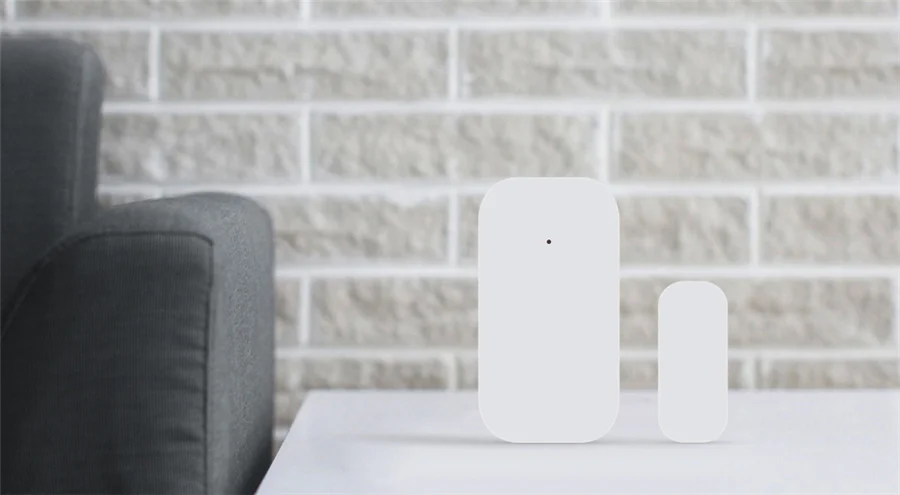

The windows door sensor consists of a sensor subject and a magnet.

It detect the opening and closing of door and windows by sensing the near and separation of the sensor subject and magnet.



Main Features:

• Original Xiaomi Aqara smart door and windows sensor for daily security

•    ZigBee wireless connection

•    Trigger and alarm: it will light and ring when someone open the door, the light will automatically turn on when someone push the door

•    Away from home mode: If someone broke into, the bell will ring and the IP camera ( not included ) will take video

•    Intelligent sensors: open the window let fresh air into room

• Small size, easy to install

• Max. sensing distance: 22mm

• Working temperature: -10 - 50 Deg.C

• Working humidity: 0 - 95pct RH

• Built-in 1pc CR1632 cell battery

• Please download APP "Mi Home" from Apple Store or Google Play




This item must match the AQARA HUB OR xiaomi multifunctional gateway to use.





aqara Door and Window sensor

Intelligent sensing each door and window real-time sensing window open/closed status



* This product should be used with a device with gateway function (the first generation of MI multifunctional gateway is not supported).

Intellisense every door and window

The Aqaral window sensor is affixed to the [and quotient in the home, which can sense the switch of the and quotient in real time

Can't remember if the doors and Windows are closed? Take out your phone and you'll see.

Intruder, call the police immediately and videotape

When alert mode is enabled, Aqara door and window sensors detect doors and Windows when someone breaks into the house

Is opened, the gateway immediately alarm, and linkage Aqara intelligent camera shooting small sight frequently sent to you

The mobile phone.

aqara Air conditioning companion +aqara Door and Window Sensor +aqara Smart camera

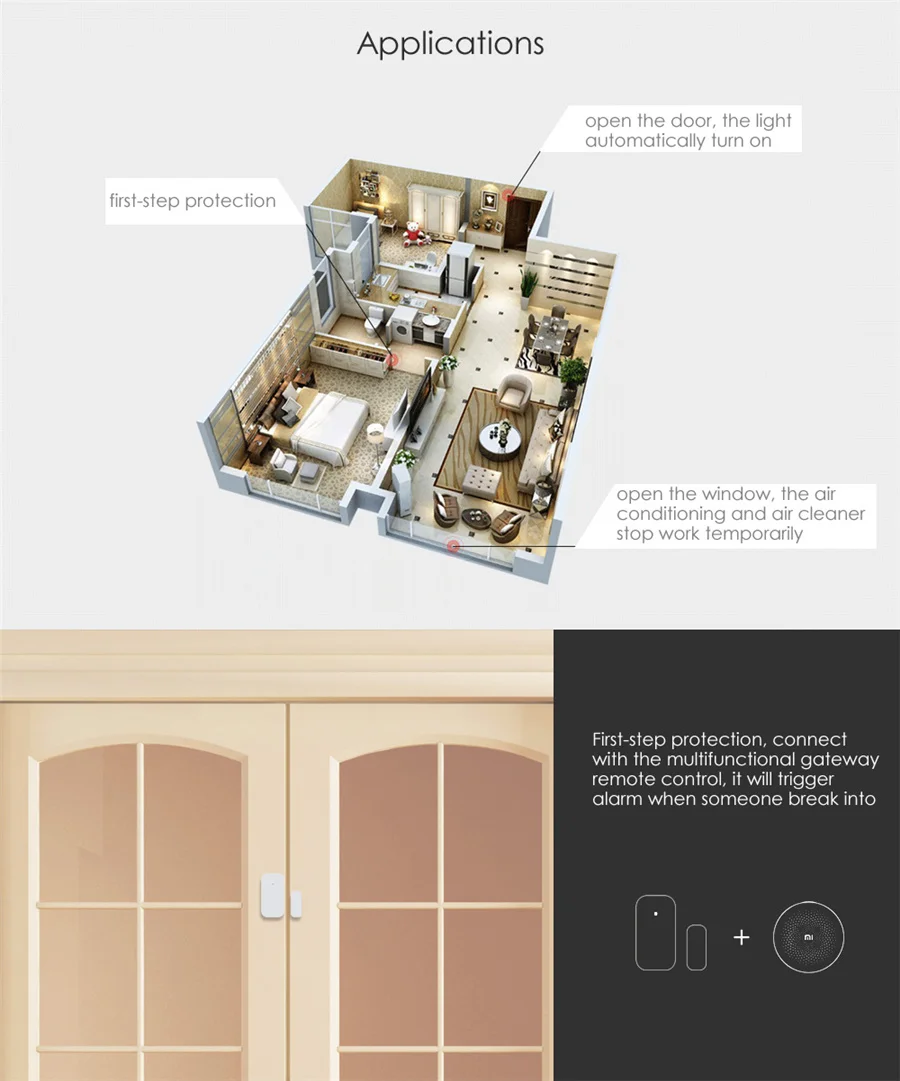

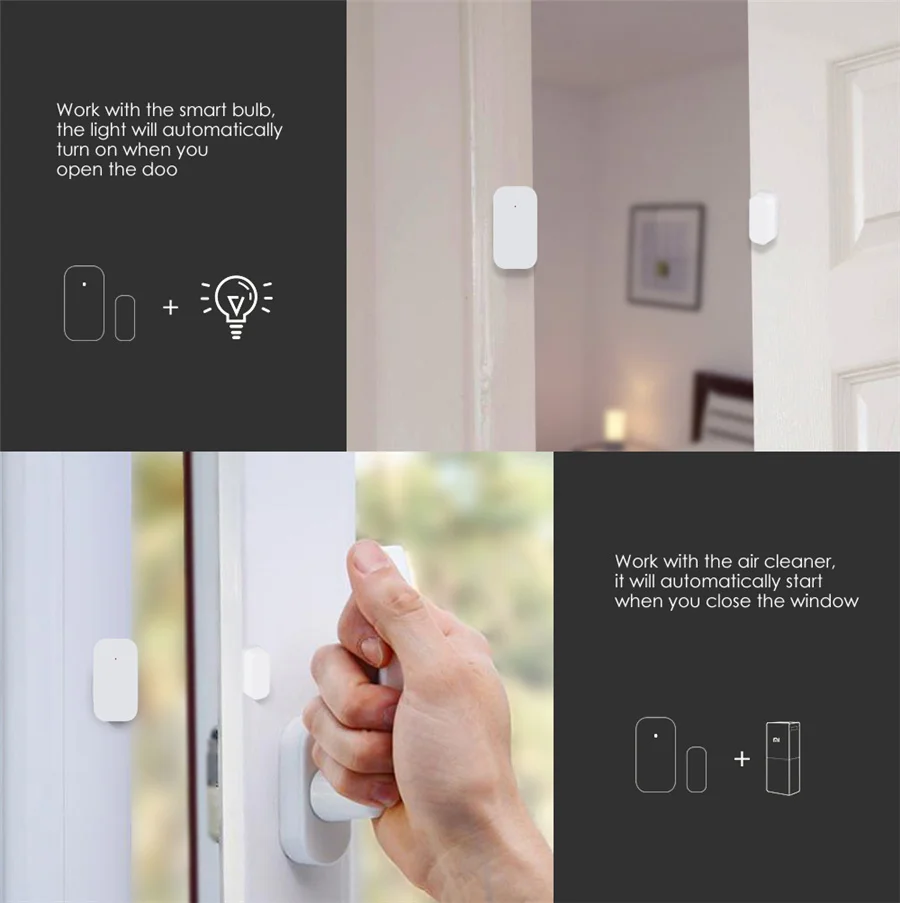

Open the door and the light turns on automatically

When coming home from work in the evening, open the door, Aqaral window sensor linkage Aqara wall switch

Automatically turn on the light, no matter how late, there is always a lamp waiting for you.



aqara Air conditioner companion +aqara Door and Window Sensor +aqara Wall switch



The air conditioner shuts off automatically when the window is opened for air

aqara Air conditioner companion +aqara Door and window sensor +Xiaomi air purifier

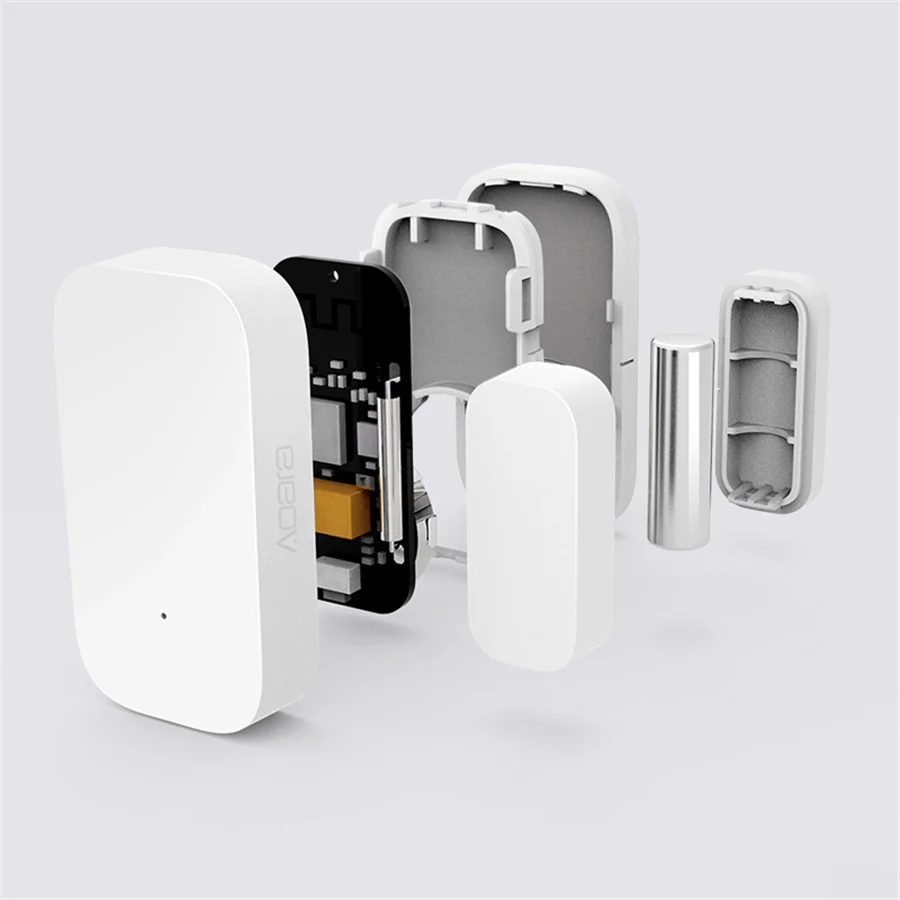

Low power technology high quality process

Aqara door and window sensors are powered by button batteries that last up to two years.

aqara door and window sensor is judged by the proximity and separation of the sensor body and the magnet

Doors and Windows open and close, quick response, no delay felt in use. Shell resistant

UV material, ensure that the appearance of the sensor long-term colorless: moisture-proof process, even in

It works well in the wet south.



★ The battery life is the typical value calculated under the standard measurement method in the environment of Green Mi Laboratory. The actual battery life may vary with the change of the environment or test method.

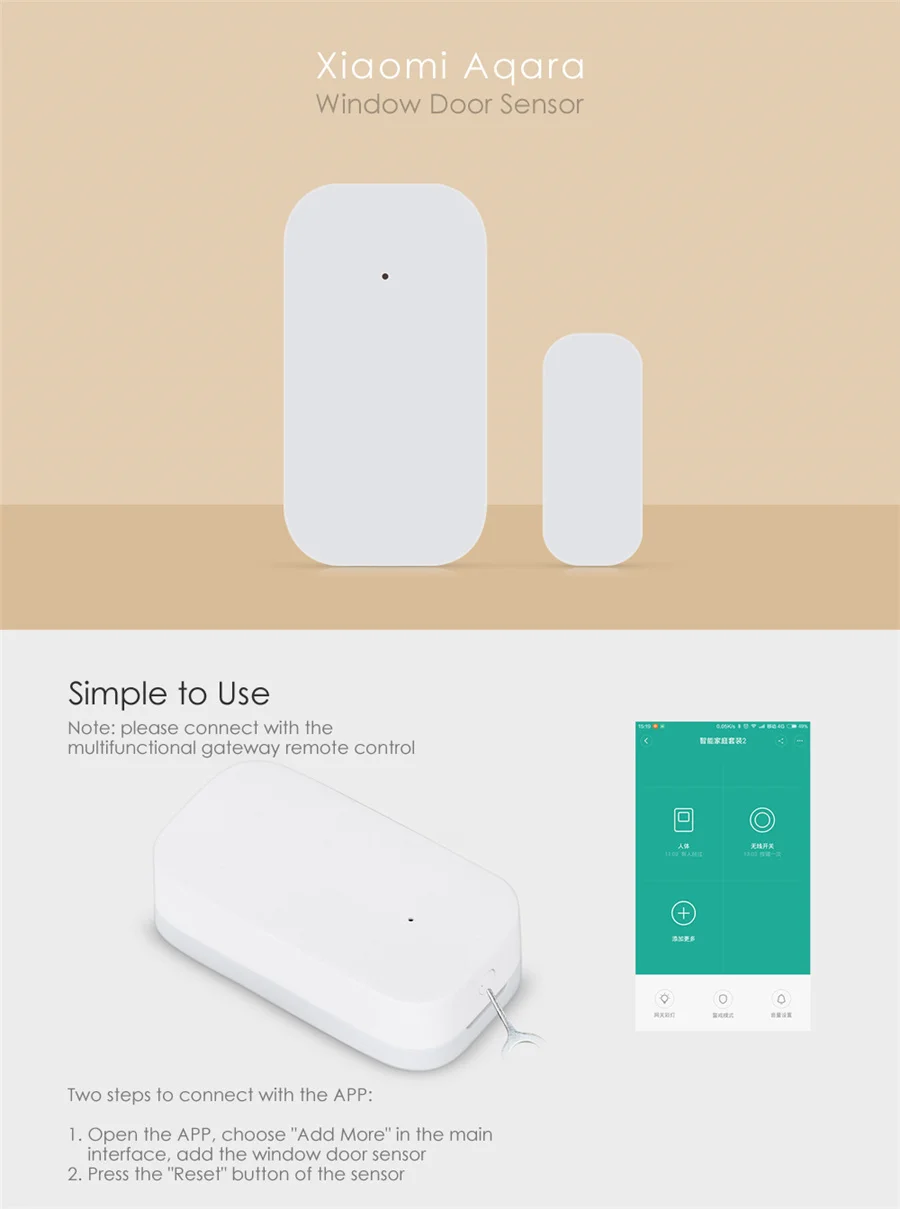

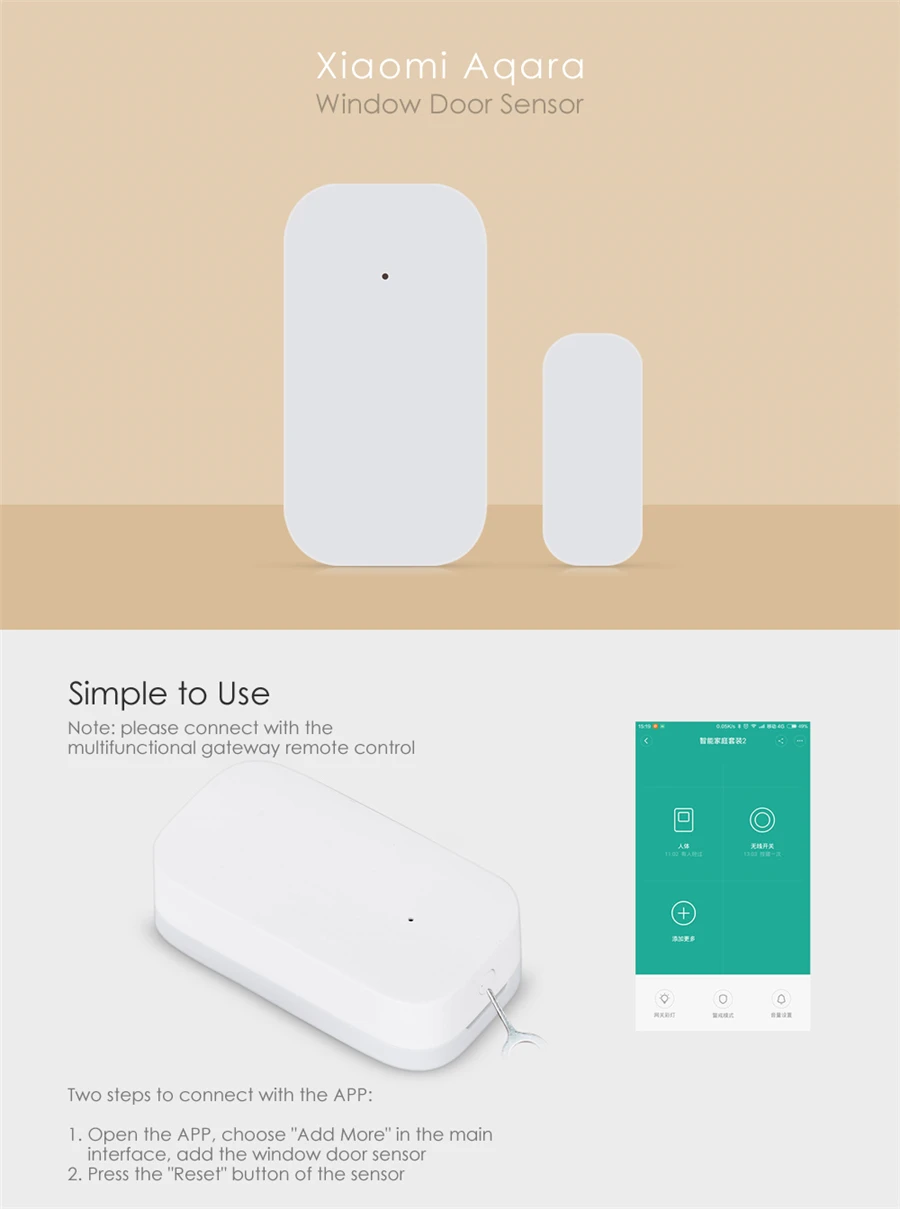

The connection is easy and only takes two steps

Add aqara Door and Window sensors in the Mijia /aqara/homekit app and long press the side reset button according to the voice and graphic prompts

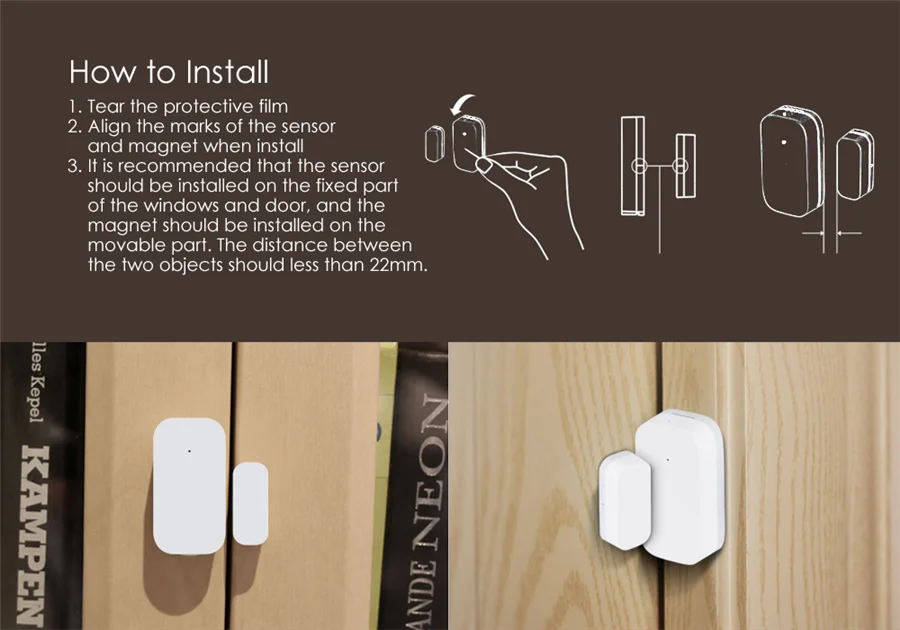

Tool free installation and ready-to-use

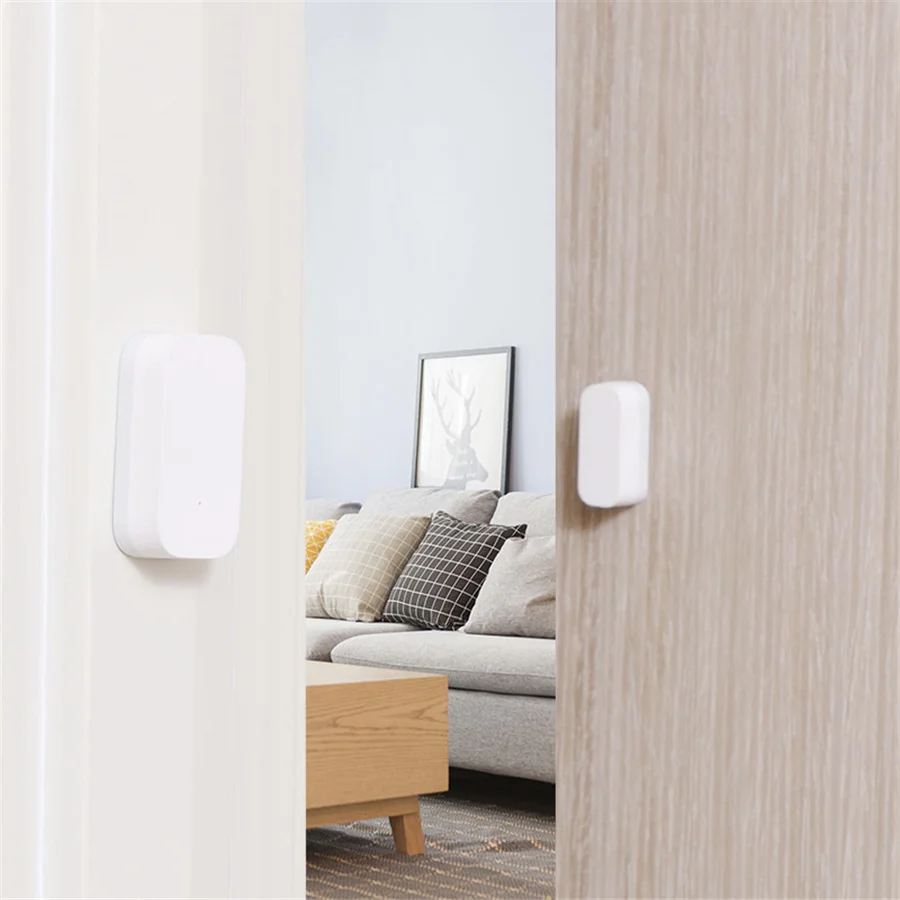

Aqara window sensor tool free installation, directly pasted in doors, Windows, drawers, cabinets and other places, immediately paste.

During installation, ensure that the spacing between the labels is smaller than 22 mm

FAQ
Question 1: How to install Aqara door and window sensor? Can the sensor body and magnets be swapped left and right?
Answer: 1. As shown in the instruction manual, align the main body and the magnet's installation markings, and install one on the door and window fixing surface and the other on the opening and closing surface (it is recommended to install the main body on the fixed surface); 2. The main body and magnet The distance should be less than 22mm; 3. It can be changed from left to right, but the main body and the magnet's installation marks must be aligned; 4. Due to the complicated indoor environment, adjusting the relative positions of the multi-function gateway and the door and window sensors can obtain a better communication environment; 2. As metal has a weakening effect on wireless signals, do not install the door and window sensors on metal parts of doors and windows.
Question 2: How to install the door and the door frame on different planes?
Answer: Turn the magnet 90 degrees. It is best to mount the sensor body on a non-moving door frame and magnets on the door to better protect the sensor. The distance between the sensor body and the magnet is less than 22mm, but at the same time, it should not be installed too close, so as to avoid collision due to contact and damage.
Question 3: How far is the Aqara door and window sensor from the gateway for normal communication?
A: In a complex indoor environment, if there is a wall separation between the door and window sensors and the gateway, the distance between the two needs to be reduced accordingly to achieve better communication.
Question 4: What is the reason for the connection failure of Aqara door and window sensors? How should I reconnect?
Answer: Possible reasons: 1. Operation error, please re-add the device according to the method of adding the device; 2. Too far from the gateway, move the device close to the gateway and add the device again; 3. The gateway exceeds the load of the sub-device.
Question 5: Why do Aqara door and window sensors often go offline?
Answer: Possible reasons: 1. The device is far away from the gateway. Please verify the distance between the sensor and the gateway and install the device near the gateway. 2. The battery is low or the battery is dead, please replace it with a new battery. 3. Zigbee is installed on a metal surface and the signal is disturbed.
Question 6: How can I tell if Aqara door and window sensors are working properly?
Answer: ① Click the reset button on the main body of the door and window sensors, and the gateway emits a sound “connected normally”, which means that the sensor and the gateway communicate normally, go to ②; if there is no prompt, move the sensor closer to the gateway and try again. A beep sounds, the sensor may have been deleted or the battery is exhausted. Please refer to the sub-device adding method or battery replacement method to re-add the sub-device or replace the new battery; ② Close and separate the sensor body and the magnet 2 to 3 times, and then enter The main page of the Aqara door and window sensor in the app, if the status changes, it means that the device is working properly.
Question 7: What are the functions of Aqara door and window sensors?
Answer: 1. Aqara door and window sensor can be installed on the door or window to sense the door or window switch status in real time; 2. Used in conjunction with other smart devices, when the door or window is sensed to open or close, the switch of the control device or other action.
Question 8: Aqara door and window sensors sometimes work and sometimes do not work?
Answer: 1. The distance between the sensor body and the magnet may be too large. Please check the distance between the sensor body and the magnet. The distance between the two cannot be greater than 22mm; 2. The distance between the sensor and the gateway may be too long. After confirming that the distance between the sensor body and the magnet is within 22mm, click the reset button of the sensor at the installation position of the sensor. If the gateway emits a beep, it means that the sensor can effectively communicate with the gateway at this installation position, otherwise move the sensor Near the gateway.
Question 9: How do I reset the Aqara door and window sensors? Under what circumstances?
Answer: 1. Press and hold the reset button of the device for 3 seconds, the indicator flashes 3 times, and the factory settings are restored. 2.In the case that the bound sensor is re-bound to another gateway, the sensor needs to be reset before the sensor can be successfully bound to the new gateway.
